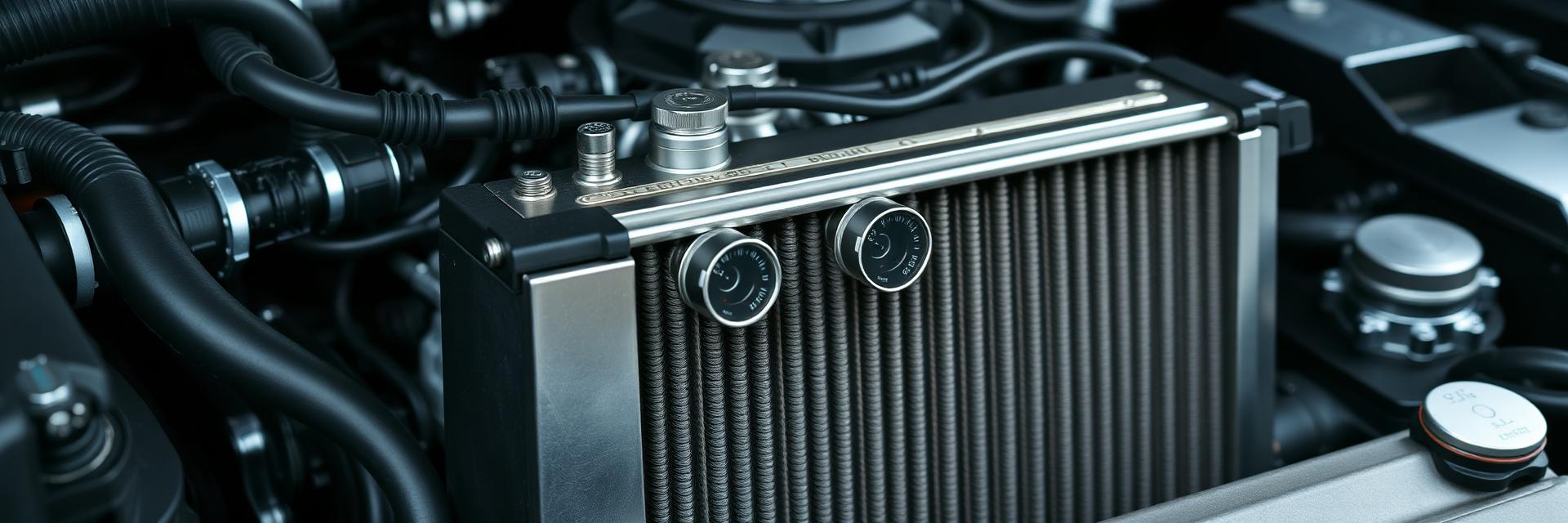

Engine radiator coolant temperature monitoring sensors
Application Note

Engine Coolant System Monitoring

Engine cooling systems maintain cylinder-wall temperatures within a narrow 85–105 °C operating window. A 10% coolant loss can trigger water-pump cavitation, creating localized hot-spots that warp cylinder heads within minutes. Modern monitoring architectures combine level, temperature, and pressure sensors into an integrated diagnostic framework that provides graduated warnings — from low-level alerts through automatic engine de-rate to emergency shutdown. Explore our coolant level sensors or browse all application guides.

Back to Applications

The Overheating Failure Cascade

Understanding the time-sequence of failure helps engineers specify appropriate sensor response times and warning thresholds:

Time After Coolant Loss Engine Condition Damage Level
0–30 seconds Coolant temp rises, thermostat opens None — recoverable
30–120 seconds Water pump cavitation begins Elevated wear
2–5 minutes Hot-spots form on cylinder liners Head gasket risk
5–10 minutes Cylinder head warping (>0.05 mm) Major repair
>10 minutes Piston seizure, con-rod failure Engine write-off

Critical Insight

The entire cascade from first coolant loss to catastrophic failure can occur in under 10 minutes at full load. Sensor response time and ECU de-rate strategy must trigger within the first 30-second window to prevent irreversible damage.

Multi-Sensor Monitoring Architecture

Modern cooling systems deploy sensors at multiple points to provide layered protection:

Sensor Location Sensor Type Function
Expansion tank Capacitive level sensor First-alert: low coolant warning
Engine block (water jacket) NTC temperature sensor Continuous temp monitoring for ECU
Radiator outlet NTC temperature sensor ΔT calculation across radiator
Coolant pump outlet Pressure sensor (0–3 bar) Flow confirmation, cavitation detection
Thermostat housing Temperature switch Fail-safe: direct fan relay trigger

Engineering Note — Graduated Response Strategy

Implement a three-tier ECU response: Tier 1 (level low OR temp >100 °C) → dashboard warning lamp + telemetry alert. Tier 2 (level low AND temp >108 °C) → engine de-rate to 60% power. Tier 3 (temp >115 °C for >30 seconds) → automatic engine shutdown with audit log entry. This strategy maximizes equipment protection while avoiding unnecessary shutdowns from transient conditions.

Root Causes of Coolant Loss

Cause Mechanism Detection Method
Hose failure Thermal aging, clamp relaxation Rapid level drop + pressure loss
Radiator core leak Stone damage, corrosion Gradual level decline over days
Water pump seal Seal wear, cavitation erosion Level drop + reduced pump pressure
Head gasket breach Thermal stress, bolt relaxation Level drop + oil contamination
EGR cooler crack Thermal fatigue from exhaust pulsation Level drop + white exhaust smoke

Fleet Telematics Integration

Fleet operators gain significant ROI by integrating coolant monitoring into telematics platforms. Key capabilities:

Remote Monitoring

Real-time coolant level and temperature data via J1939 CAN → telematics gateway → cloud dashboard. Alert thresholds configurable per vehicle class.

Predictive Maintenance

Trend analysis on coolant level history identifies slow leaks days before they become critical. ML models correlate level trends with ambient temp and operating hours.

Scheduled Servicing

Coolant condition metrics (conductivity, pH trend) trigger proactive coolant replacement at optimal intervals — not fixed mileage.

Warranty Protection

Timestamped sensor logs provide evidence that overheating events were detected and acted upon — critical for warranty claims and liability defense.

Sensor Selection by Engine Platform

Platform Level Sensor Temp Sensor Protocol
Passenger car (ICE) Float switch NTC 2.2 kΩ Analog / LIN
Commercial truck Capacitive NTC / Pt200 J1939 CAN
Off-highway / mining Capacitive (IP69K) Pt200 J1939 / CANopen
Generator set Capacitive + float (redundant) NTC Modbus RTU / analog
BEV thermal loop Ultrasonic (continuous) NTC array CAN FD
