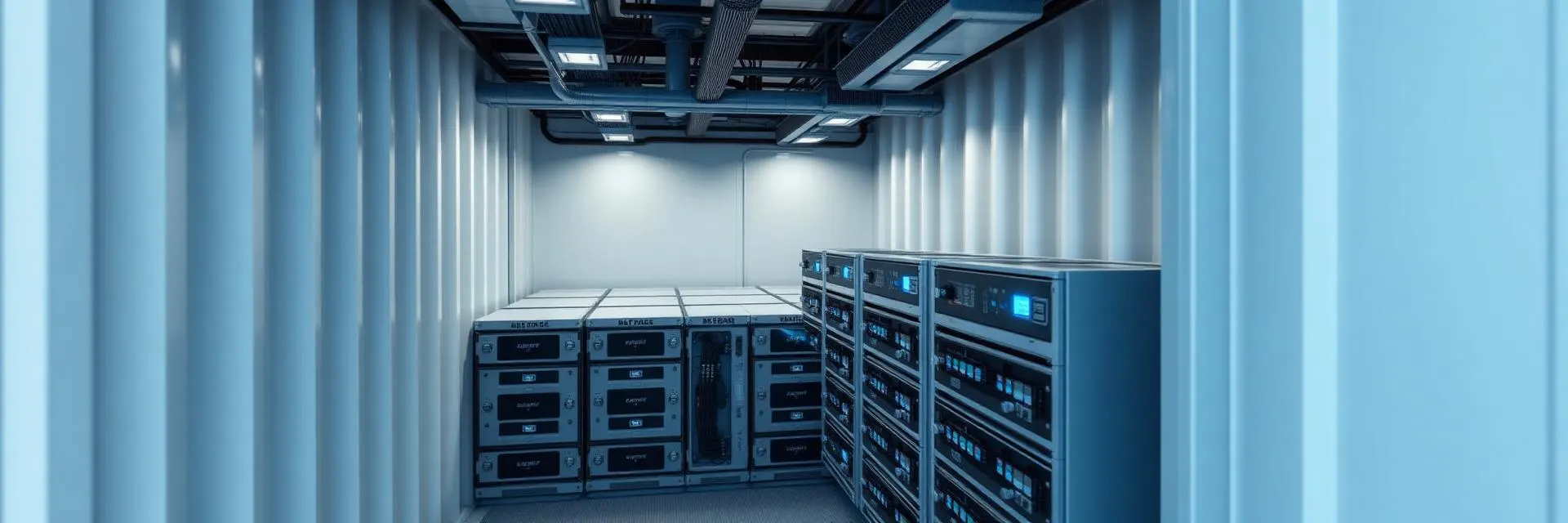

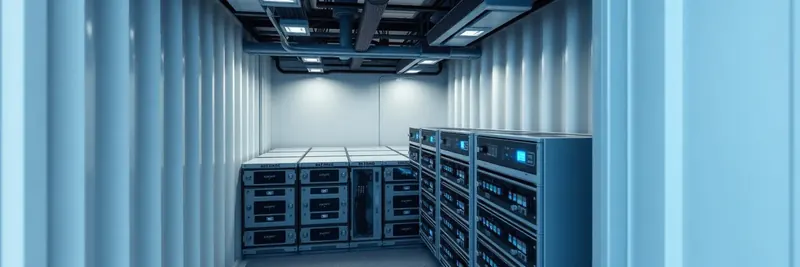

Grid-scale battery energy storage systems (BESS) — lithium-ion containerised systems from 100 kWh to 100 MWh — require robust sensor infrastructure fundamentally different from mobile EV applications. BESS sensors must operate continuously for 20+ years in outdoor enclosures, interfacing with energy management systems (EMS) via industrial protocols, and meeting fire safety standards from UL and IEC.
Thermal Management System (TMS) Monitoring
Most utility-scale BESS use liquid cooling — either direct coolant plates between cell modules or air-cooled rack designs. Pressure sensors in the cooling loop detect:
- Pump failure: sudden pressure drop at pump outlet
- Coolant line blockage: rising ΔP across module string
- Refrigerant leak (direct-cooling systems): pressure decay over time
| Parameter | Typical Value / Range |
|---|---|
| Cooling loop pressure range | 0–8 bar (water-glycol); 0–30 bar (DX refrigerant direct cooling) |
| Temperature monitoring range | -30°C to +65°C coolant; -40°C to +85°C ambient |
| Communication protocol | Modbus RTU/TCP, CAN 2.0B, IO-Link |
| Power supply | 24V DC (process), 12V DC (CAN-based rack monitoring) |
| IP rating | IP67 (outdoor containerised BESS in all climates) |
| MTBF | >500,000 hours at 40°C ambient (Telcordia SR-332 method) |
| Compliance | UL 9540A (fire testing), IEC 62933 (EES performance), IEC 60529 (IP) |
Thermal Runaway and Vent Gas Detection
In a lithium-ion cell thermal runaway event, internal pressure builds from electrolyte decomposition and gas generation (CO₂, CO, H₂, VOCs) before external temperature rises to detectable levels. A pressure sensor mounted in each battery module cabinet can detect the initial pressure rise from vent valve activation — providing 2–10 seconds of additional warning versus temperature-only detection.
📋 IEC 62933-5-2 Requirement
Grid-scale BESS must demonstrate safe response to internal failures including thermal runaway. Early-warning sensor systems — pressure, gas, and temperature combined — are cited in IEC 62933-5-2 as contributing to Tier 1 (alert) safety response. Sensor data must be logged with timestamps for post-incident analysis.
Fire Suppression System Pressure Monitoring
BESS containers equipped with total flooding clean agent (HFC-227ea, Novec 1230) or water mist fire suppression systems require pressure monitoring of the agent cylinders and discharge manifolds. Pre-discharge cylinder pressure monitoring (typically 25 bar at 20°C for HFC-227ea) confirms system readiness. Post-discharge flow pressure monitoring confirms complete agent release.
Differences from EV Battery Sensor Requirements
| Parameter | EV Battery (Mobile) | BESS (Stationary) |
|---|---|---|
| Service life | 8–15 years | 20–25 years |
| Vibration exposure | High (road vibration) | Low (seismic only) |
| Protocol | CAN, LIN, CAN-FD | Modbus, HART, Profibus |
| Temperature range | -40°C to +85°C | -20°C to +55°C (container) |
| Certification | AEC-Q100, UN ECE R100 | UL 9540, IEC 62933 |
| Redundancy | ASIL-B/C | SIL-2 for safety interlocks |
